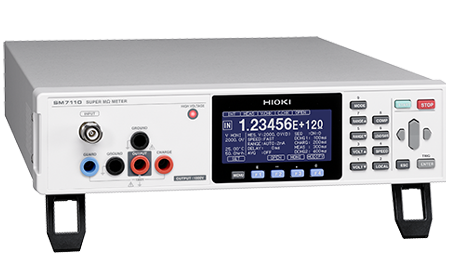

HIOKI SM7110 超绝缘计

Number of channels : 1CH

DC current measurement :

  20 pA range (0.1 fA resolution), Accuracy: ±(2.0 % of rdg. +30 dgt.)

  200 pA range (1.0 fA resolution), Accuracy: ±(1.0 % of rdg. +30 dgt.)

  2 nA range (10 fA resolution), Accuracy: ±(0.5 % of rdg. +20 dgt.)

  20 nA range (100 fA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)

  200 nA range (1 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)

  2 μA range (10 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)

  20 μA range (100 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)

  200 μA range (1 nA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.)

  *2 mA range (1 nA resolution), Accuracy: ±(0.5 % of rdg. +30 dgt.)

  (1) Measurement speed SLOW2 (internal integration time 13PLC)

  (2) At a temperature of 23 °C ±5 °C with humidity of 85% rh

  (3) 2 mA range (Measurement speed FAST only)


Resistance measurement : 50 Ω to 2 × 10 ^19 Ω

capabilities : Note: Resistance measurement accuracy is defined by the current range accuracy and voltage setting accuracy.

Setting voltage range (Accuracy) :

   0.1 to 100.0 V, 100 mV resolution, Accuracy: ±0.1 % of setting ±0.05% f.s.

   100.1 to 1000 V, 1 V resolution, Accuracy: ±0.1 % of setting ±0.05% f.s.

Current Limite : 0.1 to 250.0 V: 5/ 10/ 50 mA, 251 to 1000 V: 5/ 10 mA, to 2000 V:1.8 mA

Measurement time setting : Delay: 0 to 9,999 ms

Functions:   Comparator, averaging, self-calibration, jig Capacity open correction, cable length correction, surface resistivity, volume

                  resistivity, voltage monitor, contact check

Program function : 10 types of discharge, charge, measure and measurement sequence discharge patterns can be programmed.

Display : LCD (8 lines of 30 characters), with backlight, High voltage warning indicator

Interfaces : USB, RS-232C, GP-IB, EXT I/O (NPN/PNP can be switched)

Power supply : 100 to 240V AC , 50/60 Hz, 45 VA

Dimensions and mass : 330 mm (12.99 in)W × 80 mm (3.15 in)H × 450 mm (17.72 in)D, 5.9 kg (208.1 oz)

Accessories : Power cord ×1, Instruction manual ×1, CD-R (Communications command instruction manual, USB driver) ×1, EXT I/O male connector ×1, Short plug ×1
