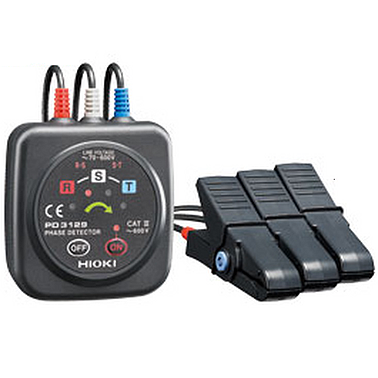

HIOKI PD3129 Phase Detector (70 ~ 600V AC)


Functions : Phase detection (positive and negative)
Voltage detection method: Electrostatic induction method
Object to be conected :φ 2.4 mm (0.09 in) to 17 mm (0.67 in) of insulated wiring
Voltage range: 3-phase 70 to 600V AC (continuous sine wave)
Frequency range : 45 Hz to 66 Hz
Safety : CATIII 600V
Applicable standards: Safety: EN61010 / EMC : EN61326
Phase indication :  LEDs
Auto power off : Auto shut off
Power supply : Two “AA“ (R6P) size batteries
Dimensions : 70 mm W x 75 mm H x 30 mm D
Mass : 200 g (7.1 oz)
Operating environment: Operating temperature: 0 to 40 °C (32 to 104°F), max. 80 % rh
Storage Temperature: -20 to 60 °C (-4 to 140°F), max. 80% rh
Accessories : Carrying case x 1, Strap x 1, R6P batteries x 2, Spiral tube x 1, Instruction manual x 1
