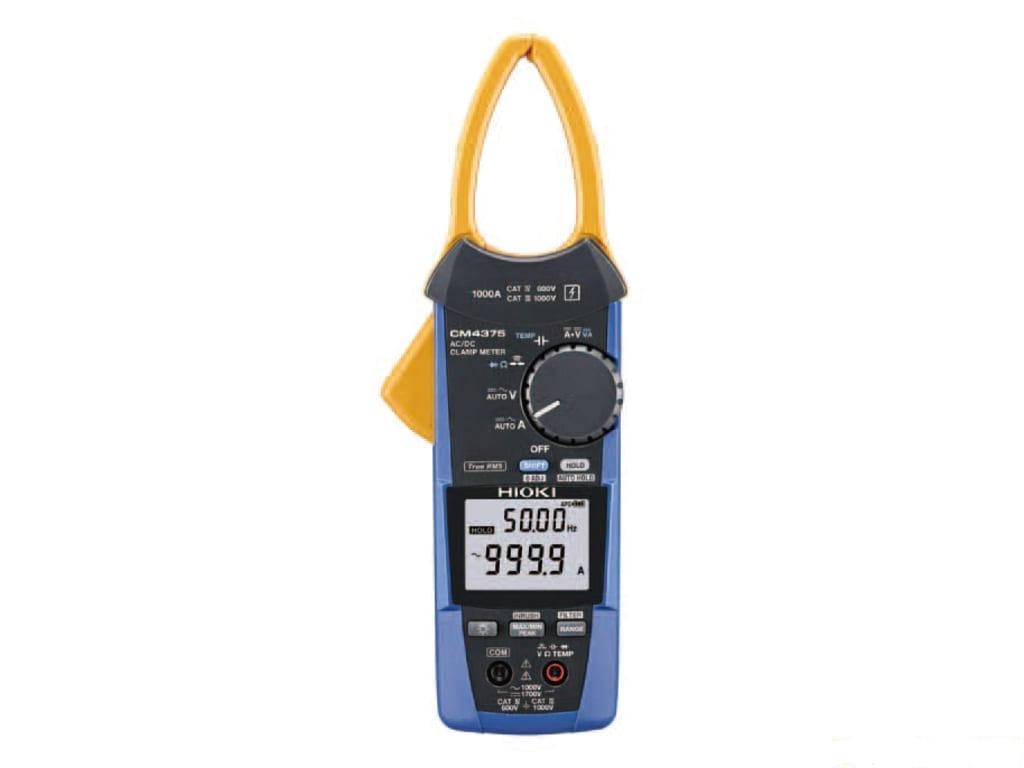

HIOKI CM4375 Clamp AC / DC (AC/DC 1000A; true RMS)

Indicator


- Electric current range DCA : 1000 A


Basic accuracy rating : ±1.3% rdg. ±0.3 A (ở 30.1 A - 999.9 A)


- Current measure range  ACA : 1000A (10 Hz - 1 kHz, True RMS)


Basic Accuracy rating : 45-66 Hz: ±1.3% rdg. ±0.3 A (ở 30.1 A - 900.0 A)


-Current measurement range DC+AC : 1000 A (DC, 10 Hz - 1 kHz, True RMS)


Basic Accuracy rating : DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (ở 30.1 A - 900.0 A)


- Capacity range DC : 0.0 VA - 1700 kVA (auto transmission based on voltage range ),


Basic Accuracy rating: ±2.0% rdg. ±20 dgt.


- Voltage measurement range DCV : 600.0 mV - 1500 V, (5 ranges),


Basic Accuracy rating : ±0.5% rdg. ±0.5 mV (ở 600 mV)


- Voltage measurement range  ACV:  6.000 V - 1000 V, (4 dải) (15 Hz - 1 kHz, True RMS),


Accuracy rating : ±0.9% rdg. 0.003 V (ở 6 V)


- Voltage range  DC+AC : 6.000 V - 1000 V, (4 dải),


Basic Accuracy rating : DC, 45-66 Hz: ±1.0% rdg. ±0.023 V (ở 6 V)


- Resistant measurement rating Ω : 600.0 Ω - 600.0 kΩ, (4 ranges),


Basic Accuracy rating : ±0.7% rdg. ±5 dgt.


-  Capacitor measure range : 1.000 μF - 1000 μF, (4 dải),


Basic Accuracy rating: ±1.9% rdg. ±5 dgt.


- Frequency measure range : 9.999 Hz - 999.9 Hz,


Basic Accuracy rating : ±0.1% rdg. ±1 dgt.


- Type k temperature measurement  : -40.0 - 400.0 ˚C (optical probe)


Basic Accuracy rating  : ±0.5% rdg. ±3.0 ˚C


Other function : auto inspection AC/DC, voltage DC, dòng DC, hiển thị giá trị MAX/ MIN/ AVG/ PEAK MAX/ PEAK MIN, low pass filter, Alarm sound, backlight, automatd power off,....


Power : LR03 x 2, continuous in  40h (without backlight)


Clamp diameter  : Ø34 mm


Dimension (WxHxD): 65x242x35mm


Weight : 330g


Accessories :wand L9207-10, case C0203, Pin LR03 x 2, manual
