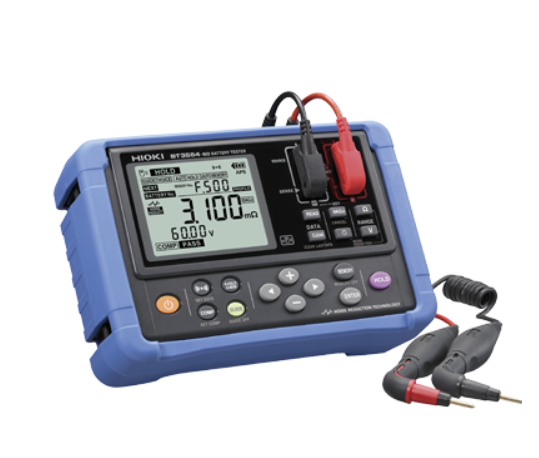

HIOKI BT3554-52 电池检测机 (3mΩ ~ 3Ω, ± 60V, L2020)

Resistance measurement range: 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges

Accuracy: ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt)

Testing source frequency: 1 kHz ±30 Hz

With function for avoiding noise frequency enabled: 1 kHz ±80 Hz

Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range)

Open terminal Voltage: 5 V peak

Voltage measurement range:

± 6 V (max. display ±6.000 V, resolution: 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg ±6 dgt

Temperature measurement accuracy:

Measurement range: -10°C to 60°C (14°F to 140°F), Maximum display: 60.0°C (140.0°F), Resolution 0.1°C (0.1°F), Measurement accuracy*: ±1.0°C (±1.8°F)

Absolute max. input voltage: 60 V DC max. (No AC input)

Measurement time: 100 ms

Response time: Approx. 1.6 sec.

Communication interface: USB, Bluetooth® wireless communications (when Z3210 installed)

Other functions: Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock

Power supply: LR6 (AA) Alkaline dry battery ×8

Continuous operating time: About 8.3 hr. (without Z3210 installed), About 8.2 hr. (with Z3210 installed and wireless communications active)

Dimensions and mass: 199 mm (7.83 in)W × 132 mm (5.20 in)H × 60.6 mm (2.39 in)D (with protector), 960 g (33.9 oz) (including batteries and protector)

Accessories:

Carrying Case C1014 ×1, Protector Z5041 ×1, Fuse Set Z5050 ×1, 0 Adj Board ×1, Neck strap ×1, USB cable ×1, Application software CD (GENNECT One) ×1, AA alkaline battery (LR6) ×8, User Manual ×1, Pin Type Lead L2020

Options: WIRELESS ADAPTER Z3210 module
