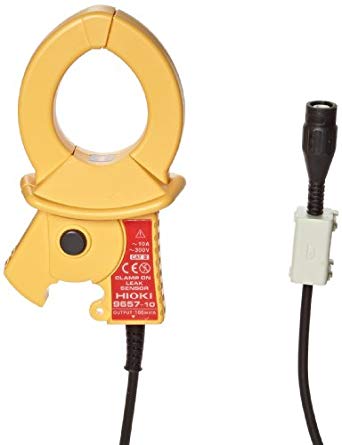

Hioki 9657-10 泄漏电流钳(AC 10A)

- Rated primary current:    AC 10 A (for leak current measurement, 50/60 Hz)
- Max. allowable input (45-66 Hz):    Max. 30 A of continuous input
- Rated output current:    AC 100 mV/A
- Amplitude accuracy (45-66 Hz):    ±1.0 % rdg. ±0.05 % f.s.
- Phase accuracy:    ±3 ° (at 50 Hz or 60 Hz)
- Frequency characteristics:    40 Hz to 5 kHz: ± 3%
(Add to amplitude accuracy)
- Max. rated voltage to earth:    AC 300 V rms (Insulated conductor, CAT III)
- Core diameter:    φ 40 mm (1.57 in)
- Dimensions and mass:    74 mm (2.91 in)W × 145 mm (5.71 in)H × 42 mm (1.65 in)D, 380 g (13.4 oz), Cord length: 3 m (9.84 ft)
- Accessories:    Instruction manual ×1

Detail

Model:9657-10
Manufacture: Hioki
Made in: Japan
Warranty: 12 months

- Rated primary current:    AC 10 A (for leak current measurement, 50/60 Hz)
- Max. allowable input (45-66 Hz):    Max. 30 A of continuous input
- Rated output current:    AC 100 mV/A
- Amplitude accuracy (45-66 Hz):    ±1.0 % rdg. ±0.05 % f.s.
- Phase accuracy:    ±3 ° (at 50 Hz or 60 Hz)
- Frequency characteristics:    40 Hz to 5 kHz: ± 3%
(Add to amplitude accuracy)
- Max. rated voltage to earth:    AC 300 V rms (Insulated conductor, CAT III)
- Core diameter:    φ 40 mm (1.57 in)
- Dimensions and mass:    74 mm (2.91 in)W × 145 mm (5.71 in)H × 42 mm (1.65 in)D, 380 g (13.4 oz), Cord length: 3 m (9.84 ft)
- Accessories:    Instruction manual ×1
