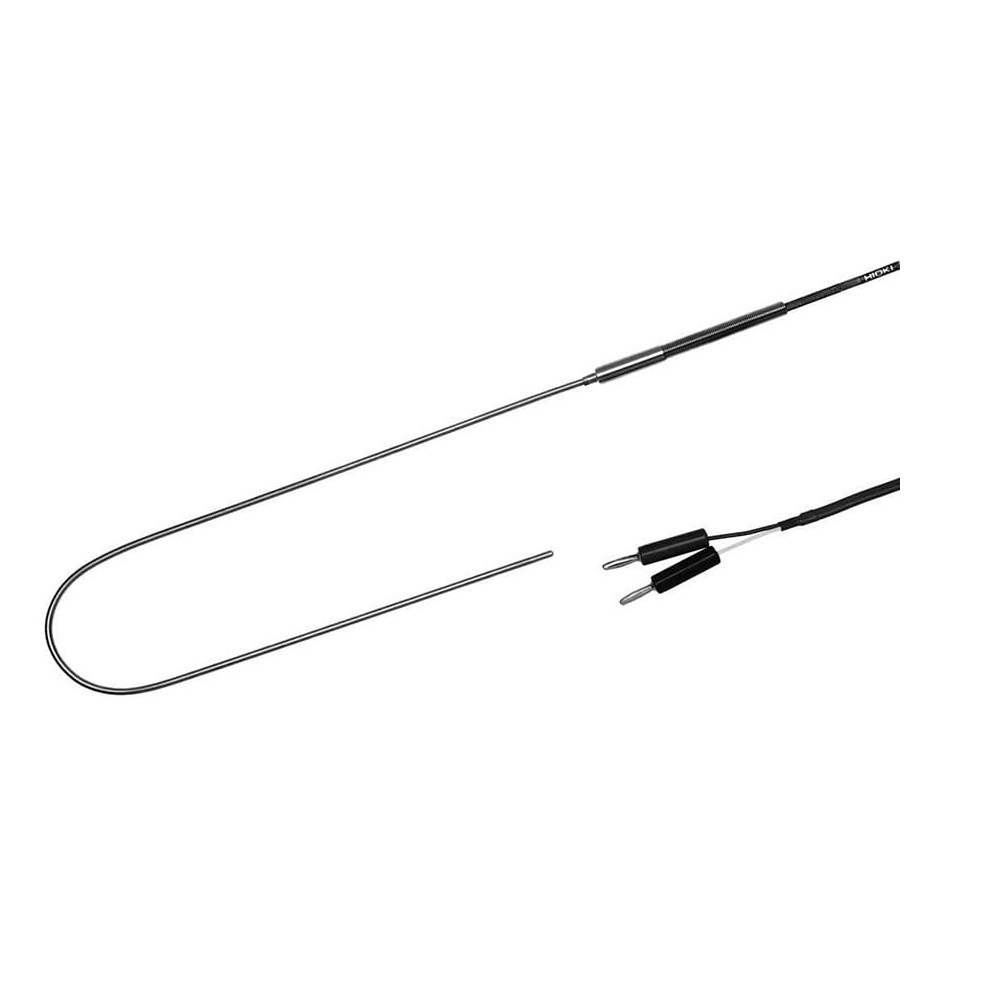

HIOKI 9182 护套式温度探头 (K type,for Hioki 3441, 3442)

Temperature Probe for Hioki Temperature HiTester 3441, 3442

Material type: K type thermocouple (Chromel / Almel)

Contact type: Non-grounded

Tolerance: At -40°C (-40°F ) and more , the greater of ±2.5°C (±4.5°F ) and ±0.75% of the measured value

Response (90%): ≈5 sec

Size of Sheath (mm)/(inch): φ 3.2 × 500 (mm)/φ 0.13 × 19.69 (in)

Compensation lead: Heat resisting type (0 to 150°C, 32 to 302°F) 2m (6.56 ft)

Grip heat resistance: 90°C (194°F), clamp size φ 8 × 30 mm (φ 0.31 × 1.18 in)

Measurement temperature: −50~750°C, –58~1382°F
