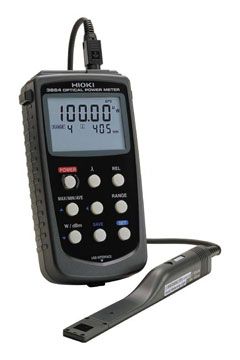

Hioki 3664 光功率计

Name: Hioki 3664 光功率计
Brand: HIOKI
SKU: HIOKI3664
Availability: OutOfStock

SPECIFICATIONS

Optical power measurement: W, dBm

Measurement display unit: nW, mW, mW, dBm, dB

Range setting: Auto

Accuracy: ±0.7%

Analog output: ~1V

Output resistance: 50Ω

Output connector: ø3.5 mini jack

Auxiliary functions: Auto power save, Setting backup, Battery check

Power supply: AA (LR6) × 4, AC adapter (9445-02)

Max. rated power: 1.6 VA

Continuous battery operation: ~60h

Product Net Weight: 270g

Product Size: 85*160*35mm

The warranty period: 12 month

Details

Optical power measurement	W, dBm
Range setting	Auto (Manual setting available)
Accuracy	±0.7% (±5% in combination with the optional sensor)
Wavelength sensitivity compensation	Can be set for every 1nm. Automatic compensation for the sensor’s sensitivity Max. 10 wavelengths preset (including initial value for a sensor)
Scaling	Can be set for each wavelength.
Relative measurement	Display the relative value to the measured value or set value. (Displayed value = Measured value – Reference value) Reference value can be set from the measured value or manual input. Settable range: 0.001nW to 1.9999W (-90.00dBm to 33.00dBm)
Display	4-1/2 digit, (19999 max.), Display resolution: 0.01dBm / 0.01dB
Measurement display unit	nW, mW, mW, dBm, dB
Wavelength display	4 digit, Unit: nm
Display update rate	330ms approx.
MAX/MIN display	Maximum and minimum value display while measurement
Average display	Display the moving average value. Averaging times: 2 to 100
Analog output	1V approx. when the sensor calibration point input
Output resistance	50Ω
Output connector	ø3.5 mini jack
Interface	Output measurement value and remote control
Auxiliary functions	Auto power save, Setting backup, Battery check
Safety	EN61010-1: 2001 Pollution degree 2
Power supply	AA (LR6) × 4, AC adapter (9445-02
Max. rated power	1.6VA
Continuous battery operation	60 hours approx. (continuous use with the 9742 at calibration point input)
Dimensions and weight	85(W) × 160(H) × 35(D) mm, 270g (excluding batteries)
