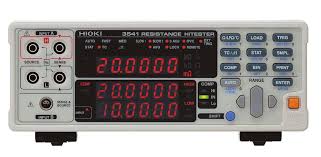

Hioki 3541 电阻测试仪

Specification
- Resistance range:
   + 20mΩ(Max.20mΩ)/resolution 0.1μΩ~100MΩ(max.110MΩ)/resolution 1kΩ
   + 2Ω(max.2Ω)/resolution 10μΩ~2kΩ(max.2kΩ)/ resolution 10mΩ
- Measurement accuracy:
   + 2kΩ/20kΩ là ±0.007 % rdg. ±0.0015 % f.s
   + 2Ω/2kΩ là ±0.011 % rdg. ±0.01 % f.s
- Testing current:
   +  100nA là 1A DC
   +  Low Power ON: 10μΩ là 10mA DC
- Open-terminal voltage: 5V DC 20/200mΩ), 2.6V DC (2~20kΩ), 13V DC(1M~100MΩ)
- Sampling rate: FAST, MEDIUM, SLOW, 3 settings
- Measurement times:
   + Fast: 0.6ms ± 0.3ms 50/60Hz
   + Medium: 21ms ± 1ms/50Hz, 17ms ± 1ms/ 60Hz
   + Slow1: 155ms ± 5ms/50Hz, 149ms ± 5ms/60Hz
   + Slow2: 455ms ± 10ms/50Hz, 449ms ± 10ms/60Hz
- Other functions: BCD, Temperature measurement (-10.0 to 99.9°C), Comparator , Delay, OVC (offset voltage compensation), Measurement fault detection, Probe short-circuit detection, Improve contact, Auto-memory, Statistical calculations, Settings monitor , Trigger function
- Interface: RS-232C, Printer, GP-IB (Model RM3542-01)
- External I/O:    Trigger, Hold input, Comparator output, Settings monitor terminal
- Power supply, consumption: 100 to 240 V AC, 50/60 Hz, 30 VA max.
- Dimensions, mass:         215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.6 kg (91.7 oz)
- Supplied accessories:    CLIP TYPE LEAD 9287-10 × 1, TEMPERATURE PROBE 9451 × 1, Power cord × 1, EXT I/O Male connector × 1, Operation manual × 1
- The warrnty preiod: 12 month

Detail
Resistance range 20 mΩ range (Max. 20.0000 mΩ, 0.1 μΩ resolution) to 100 MΩ range (Max. 110.000 MΩ, 1 kΩ resolution), 11 steps
[at Low Power ON] 2 Ω range (Max. 2.00000 Ω, 10 μΩ resolution) to 2 kΩ range (Max. 2.00000 kΩ, 10 mΩ resolution), 4 steps
Measurement accuracy (SLOW 2) ±0.007 % rdg. ±0.0015 % f.s. dgt. (at 2 k/ 20 kΩ range)
[at Low Power ON] ±0.011 % rdg. ±0.01 % f.s. (at 2 to 2 kΩ range)
Testing current 100 nA to 1 A DC, [at Low Power ON] 10 μA to 10 mA DC
Open-terminal voltage 5 V DC (at 20/ 200mΩ range), 2.6 V DC (at 2 to 20kΩ range), 13 V DC (at 1M to 100MΩ range), [at Low Power ON] 60 mV DC
Sampling rate
Delay = 0ms, TC off, Statistics operation off, Offset voltage revise off
  FAST MIDIUM SLOW 1 SLOW 2
50Hz 0.6ms ± 0.3ms 21ms ± 1ms 155ms ± 5ms 455ms ± 10ms
60Hz 0.6ms ± 0.3ms 17ms ± 1ms 149ms ± 5ms 449ms ± 10ms
Response time (at truely resistance) : the above time plus approx. 1 ms
(different at setting condition, or testing target)
Other functions Temperature measurement (-10.0 to 99.9°C), Revised resistance with temperature, Revised temperature with inductor resistance, Comparator, Settings save & load (Max. 30 settings), Classification measurement (BIN function), Statistics operation, Offset voltage revise, Delay, Average function
Interface RS-232C and GP-IB (standard)
External I/O [Output] BCD, End of measurement, Comparator result, BIN result, NG, with open collector output
[Input] Select setting, Trigger, Calibration, Zero-adjust, Print, with C-MOS level
Power supply, consumption 100 to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions, mass 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.6 kg (91.7 oz)
Supplied accessories CLIP TYPE LEAD 9287-10 × 1, TEMPERATURE PROBE 9451 × 1, Power cord × 1, EXT I/O Male connector × 1, Operation manual × 1
