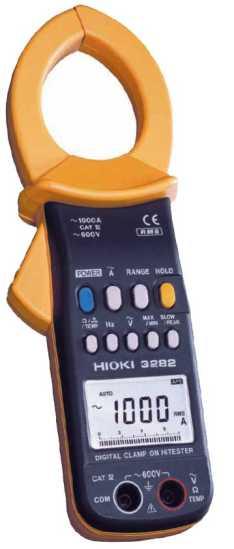

HIOKI 3282 AC DIGITAL CLAMP ON HiTESTER

    3282
AC Current   30.00 to 1000 A, 3 ranges (40 Hz to 1 kHz, True RMS), Basic accuracy: ±1.0 % rdg. ±5 dgt.
AC Voltage 300.0/ 600 V, (40 Hz to 1 kHz, True RMS)
Basic accuracy: ±1.0 % rdg. ±3 dgt.
Crest factor 2.5 and under (1.7 at 600 A, 1.7 at 600 V) 2.5 and under (1.7 at 1000 A, 1.7 at 600 V)
Monitor, Analog output None
Frequency 30.0 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt.
Resistance, Continuity check 1000 Ω/ 10.00 kΩ, Basic accuracy: ±1.5 % rdg. ±5 dgt.,
Continuity: Beep sound at 30 Ω or less
Other function Current wave peak value, Voltage wave peak value, Distortion check (Crest factor 1.00 to 5.00), Maximum/ Minimum/ Average value record function, Data hold, Auto power off
Display LCD, Max. 3000 dgt., Display refresh rate: 4 times/s (at FAST), 1 time/3s (at SLOW), 4 times/s (bar graph)
Power supply Stacked manganese battery (6F22) ×1, Continuous use: 45 hours
Core jaw dia.   φ46 mm (1.81 in)
Dimensions, mass   62 mm (2.44 in) W × 230 mm (9.06 in) H × 39 mm (1.54 in) D, 400 g (14.1 oz)
Supplied accessories TEST LEAD L9207-10 ×1, CARRYING CASE 9399 ×1, Hand strap ×1, Stacked manganese battery (6F22) ×1, Instruction Manual ×1
