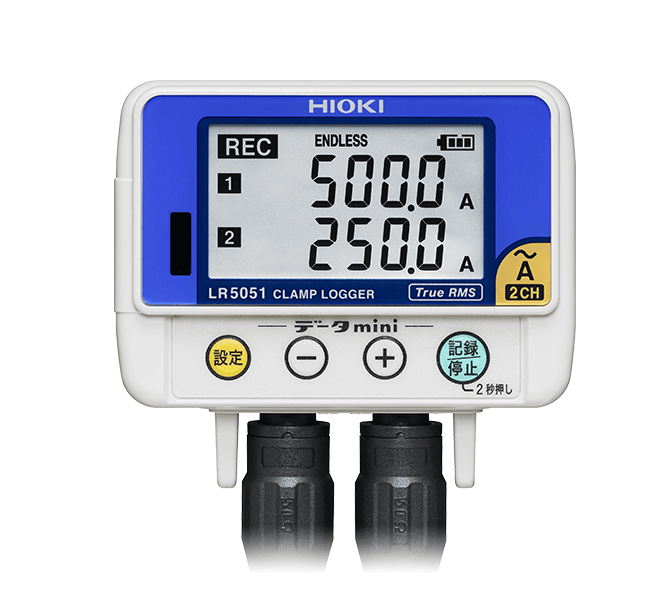

HIOKI LR5051 CLAMP LOGGER

Specification
- Feature:      Record load current of 50Hz/60Hz lines Record leak current
- Measurement items:      AC Current (2 channels)
- Measurement range:
     + When Using 9669 :1000A range
    + When Using CT6500 :50.00A/ 500.0A range
    + When Using 9695-02 :5.000A/ 50.00A range
    + When Using 9675 :500.0mA/ 5.000A range
    + When Using 9657-10 :500.0mA/ 5.000A range
- Basic Accuracy: ±0.5%rdg. ±5dgt.+Clamp sensor accuracy
- Waterproof and dustproof: Not waterproof
- Operating temperature and humidity: -0°C(32°F) to 50°C(122°F) , 80%rh or less (non-condensating)
- Dimensions & Mass: 79x70x37mm,165g
- Power supply: LR6 (AA) Alkaline battery 1.5V × 2
- Battery life:
   + Case 1 : Approx. 2 years
   + Case 2: Approx. 2 months
- Accessories:      LR6 (AA) Alkaline battery 1.5V × 2, Instruction manual ×1, Operation manual×1



Detail
Features Record load current of 50Hz/60Hz lines Record leak current
Measurement items AC Current (2 channels)
Measurement range When Using 9669 :1000A range
When Using CT6500 :50.00A/ 500.0A range
When Using 9695-02 :5.000A/ 50.00A range
When Using 9675 :500.0mA/ 5.000A range
When Using 9657-10 :500.0mA/ 5.000A range
Basic Accuracy ±0.5%rdg. ±5dgt.+Clamp sensor accuracy
Waterproof and dustproof Not waterproof
Operating temperature and humidity -0°C(32°F) to 50°C(122°F) , 80%rh or less (non-condensating)
Dimensions & Mass Approx. 79mm(3.11in)W×70mm(2.76in) H×37mm(1.46in)D, 165g(5.8oz)
Power supply LR6 (AA) Alkaline battery 1.5V × 2
Battery life Case 1 : Approx. 1 years
(1min. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C)
Case 2: Approx. 1 months
(1sec. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C)
Accessories LR6 (AA) Alkaline battery 1.5V × 2
Instruction manual ×1, Operation manual×1
