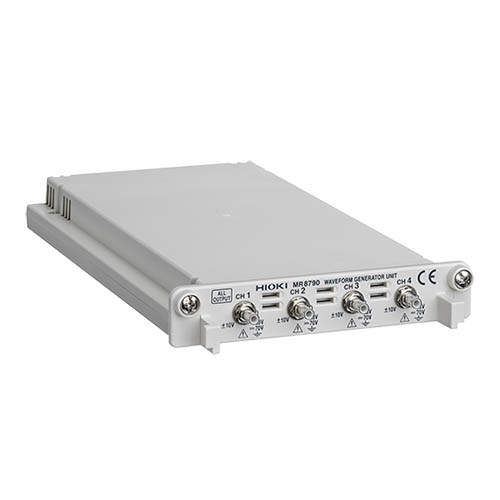

HIOKI MR8790 펄스 발생기 장치

  • 생산업체:HIOKI
    Model: MR8790
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 바로 구매하기
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Output terminal: Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less)
Max. rated voltage to ground: 33 V rms AC or 70 V DC
Output voltage range: -10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV)
Max. output current: 5 mA
Output function: DC, Sine wave (Output frequency range: 0 Hz to 20 kHz)
Accuracy Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz)
Offset accuracy: ±3 mV
DC output accuracy: ±0.6 mV
Other: Self-test function (Voltage, Current)
Dimensions and mass: 06 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz)
MR8791



Details
Output terminal Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less)
Max. rated voltage to ground: 33 V rms AC or 70 V DC
Output voltage range -10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV)
Max. output current 5 mA
Output function DC, Sine wave (Output frequency range: 0 Hz to 20 kHz)
Accuracy Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz)
Offset accuracy: ±3 mV
DC output accuracy: ±0.6 mV
Other Self-test function (Voltage, Current)
Dimensions and mass 06 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz)
Accessories None
