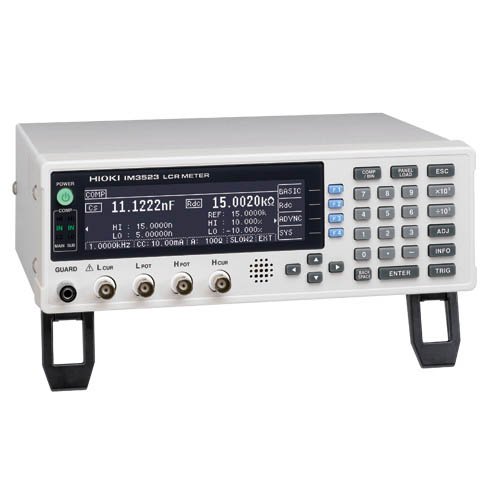

Hioki IM3523 LCR 미터

SPECIFICATIONS
- Measurement modes: LCR, Continuous testing
- Measurement parameters:Z, Y, θ, Rs (ESR), Rp, DCR (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
- Measurement range: 100mΩ to 100MΩ, 10 ranges (All parameters defined in terms of Z )
- Displayable range:
    Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
    ± (0.000000 [unit] to 9.999999G [unit])
    Real value display for Z and Y only
    θ: ± (0.000° to 999.999°), D: ± (0.000000 to 9.999999)
    Q: ± (0.00 to 99999.99), Δ%: ± (0.0000% to 999.9999%)
- Basic accuracy: Z : ±0.05%rdg. θ: ±0.03°
- Measurement frequency: 40Hz to 200kHz (1mHz to 10Hz steps)
- Measurement signal level:
    Normal mode
    V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
    CC mode: 10 μA to 50 mArms, 10 μArms steps
- Output impedance: 100 Ω
- Display: Monochrome LCD
- Measurement time: 2 ms (1 kHz, FAST, representative value)
- Function: Comparator, BIM measurement, panel loading/ saving, memory function
- Interface: EXT I/O, USB communiction, Optional: Choose RS-232C or GP-IB or LAN
- Power supply: 100 to 240 VAC, 50/60 Hz, 50 VA max
- Dimensions, mass: 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.4 kg (84.7 oz)
- Supplied accessories: Power cord ×1, Instruction Manual ×1, CD-R (Includes PC commands and sample software) ×1
- The warranty period: 12 month

Detail
Measurement modes LCR, Continuous testing
Measurement parameters Z, Y, θ, Rs (ESR), Rp, DCR (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurement range 100mΩ to 100MΩ, 10 ranges (All parameters defined in terms of Z )
Displayable range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
± (0.000000 [unit] to 9.999999G [unit])
  Real value display for Z and Y only
θ: ± (0.000° to 999.999°), D: ± (0.000000 to 9.999999)
Q: ± (0.00 to 99999.99), Δ%: ± (0.0000% to 999.9999%)
Basic accuracy Z : ±0.05%rdg. θ: ±0.03°
Measurement frequency 40Hz to 200kHz (1mHz to 10Hz steps)
Measurement signal level Normal mode
V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Output impedance Normal mode: 100 Ω
Display Monochrome LCD
Measurement time 2 ms (1 kHz, FAST, representative value)
Functions Comparator, BIN measurement (classify function), Panel loading/ saving, Memory function
Interface EXT I/O (handler), USB communication (high-speed)
Optional: Choose 1 from RS-232C, GP-IB, or LAN
Power supply 100 to 240 V AC, 50/60 Hz, 50 VA max
Dimensions, mass 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.4 kg (84.7 oz)
Supplied accessories Power cord ×1, Instruction Manual ×1, CD-R (Includes PC commands and sample software) ×1

Catalog

pdficon LCR METER IM3523/IM3533
product catalog.pdf (4.21 MB) (2012-04-09 updated)

pdficon LCR METER Series
product catalog.pdf (2.23 MB) (2013-01-23 updated)
