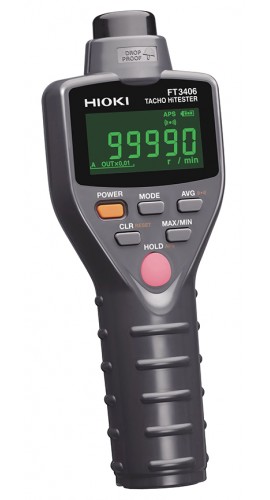

HIOKI FT3406 타초 하이 테스터

- Measurement method

+ Non-contact: Using red visible-spectrum light and reflective tape

+ Contact: Using optional Contact Adapter

- Measurement ranges Non-contact, AVG=ON (option)

+ [r/min] (30.00 to 199.99) to (20000 to 99990)

+ [r/s] (0.5000 to 1.9999) to (200.0 to 1600.0)

+ [cycle (ms)] (0.6000 to 1.9999) to (200.0 to 1999.9)

+ [count] 0 to 999999

- Measurement ranges Contact, AVG=ON    (option)

+ [r/min] (15.00 to 199.99) to (2000 to 19999)

+ [r/s] (0.2500 to 1.9999) to (200.0 to 333.00)

+ [cycle (ms)] (3.000 to 19.999) to (200.0 to 3999.9)

+ [count] 0 to 999999

- Measurement ranges Contact, AVG=ON

+ [cycle (m/min)] (1.500 to 19.999) to (200.0 to 1999.9)

+ [cycle (ms)] (0.0250 to 1.9999) to (20.00 to 33.30)

- Accuracy

+ Up to 9999 counts: ±1 dgt. (AVG=ON), ±10 dgt. (AVG=OFF)

+10000 counts or more: ±2 dgt. (AVG=ON), ±20 dgt. (AVG=OFF)

+ 20000 counts or more(r/min mode only) : ±20 dgt. (AVG=ON), ±100 dgt. (AVG=OFF)

Detection range: 50 mm to 500 mm (1.97" to 19.7")

Display refresh rate: Approx. 0.5 to 10 times/sec

Dustproof and waterproof: IP50 (EN60529)

Functions: (FT3406 only)       [Analog output] 0 - 1 V f.s., Accuracy: ±2 % f.s., Output resistance: 1 kΩ

[Pulse output] 0 - 3.3 V, Output resistance: 1 kΩ

Use with the AC adapter possible

Functions        MAX/MIN display, Display hold, Average, Auto power save, Buzzer, Drop proof (1m onto concrete surface)

Power supply  LR6 alkaline battery ×2 (continuous use of 25 hours) or AC ADAPTER Z1004

Dimensions, mass        71 mm(2.80 in)W × 186 mm(7.32 in)H × 38 mm(1.5 in)D , 230 g (8.1 oz.)

Accessories     LR6 alkaline battery ×2, Carrying case ×1, REFLECTIVE TAPE 9211 ×1 sheet (30pieces/12mm (0.47in) × 12mm (0.47in) per piece), OUTPUT CORD 9094 ×1
