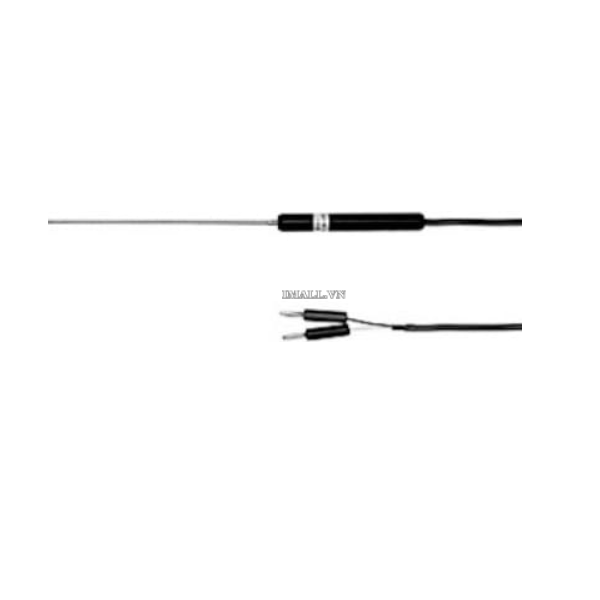

HIOKI 9183 Shealth 유형 온도 프로브 (Type K, for Hioki 3441, 3442)

Hioki Temperature Probe for Temperature HiTester 3441, 3442

Material type: K type thermocouple (Chromel / Almel)

Contact type: Non-grounded

Tolerance: At -40°C (-40°F ) and more , the greater of ±1.5°C (±2.7°F) and ±0.4 % of the measured value

Response (90%): About 5 sec

Size of Sheath (mm), (inch): φ 3.2 × 150 (mm)/φ 0.13 × 5.91 (in)

Compensation lead: Conventional type (-20~90°C, -4~194°F), 1m (3.28 ft)

Grip heat resistance: 150°C (302°F), Grip size φ 13 × 100 mm (φ0.51 in × 3.94 in)

Measurement temperature: −50~750°C/–58~1382°F

Details

Outline Drawing

Datasheet
