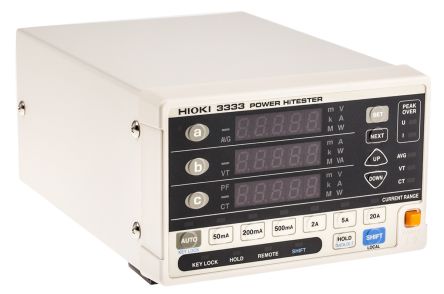

파워 하이테크 Hioki 3333

Measurement lines :Single-phase 2-wires
Measurement items :Voltage, Current, Active power, Apparent power, Power factor
Measurement ranges     Voltage range: 200 V AC (300 V Max.)
Current range: 50/ 200/ 500 mA, 2/ 5/ 20 A AC (30 A Max.)
Depends on combination of voltage and current range
(Power range: 10.000 W to 4.000 kW)
Input resistance (50/60 Hz) Voltage: 2.4 MΩ, Current: 7 mΩ or less (direct input)
Basic accuracy :[Guaranteed for 1 year] ±0.1 % rdg. ±0.1 % f.s. (Voltage, Current, Active power, at 45 to 66 Hz, input current 20 A or less)
[Guaranteed for 3 years] ±0.1 % rdg. ±0.2 % f.s. (Voltage, Current, Active power, at 45 to 66 Hz, input current 20 A or less)
Display refresh rate :5 times/second
Frequency characteristics :45 Hz to 5 kHz
Other functions :Scaling (VT, CT ratio settings), Average function
Interface :RS-232C standard, (Model 3333-01 also includes GP-IB)
Power supply :100 to 240 V AC, 50/60 Hz, 20 VA max.
Dimensions, mass :160 mm (6.30 in) W × 100 mm (3.94 in) H × 227 mm (8.94 in) D, 1.9 kg (67.0 oz)
Supplied accessories :Instruction Manual × 1, Power cord × 1
