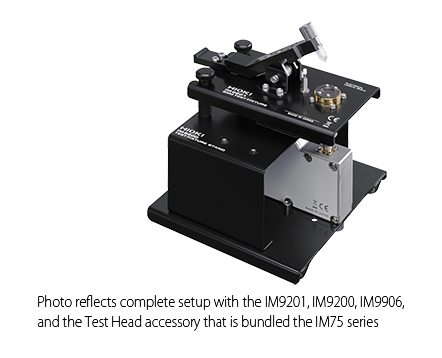

MD TEST FIXTURE IM9201
Manufacturer: HIOKI Model: IM9201 Origin: Japan - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
| Frequency range | DC to 3 GHz |
|---|---|
| Compatible package sizes | 0201, 0402, 0603, 0805, 1206, 1210 (EIA) |
| Electrode structure | Bottom electrodes |
| Maximum voltage | ±42 Vpeak (AC+DC) |
| Supported units | IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587* *3GHz measurement frequency impedance analyzer available soon |
| Additional uncertainty | Impedance: ±Ze [%] Phase: ±0.58 × Ze [° ] Ze = Ae + (Zse / Zx + Yoe × Zx) × 100 Zx: Measured impedance value [Ω] Ae: 4 × f2 [%] Zse: (100 + 500 × f) / 1000 [Ω] Yoe: (10 + 100 × f) / 1000000 [S] f [GHz] |
