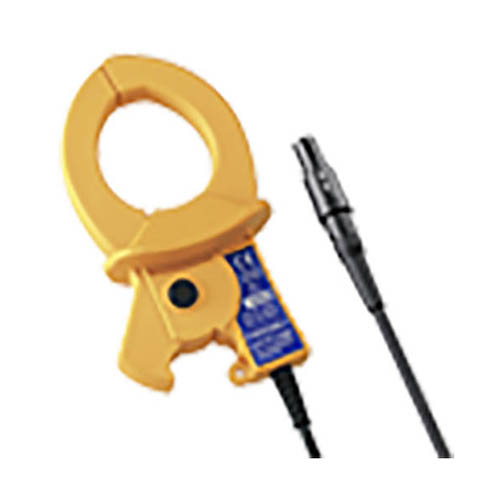

HIOKI CT7136 AC CURRENT SENSOR
Manufacturer: HIOKI Model: CT7136 - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Rated measured current 600 A AC
Measurable wire diameter: 46 mm (1.81 in.) or less
Current range and combined amplitude accuracy (45 to 66 Hz) *Accuracy guaranteed up to 120% of range.:
Current range Combined accuracy 500.00 A 0.4% rdg. + 0.112% f.s. 50.000 A 0.4% rdg. + 0.22% f.s. 5.0000 A 0.4% rdg. + 1.3% f.s. [*2]
Phase accuracy (45 to 66 Hz): Within ±0.5°
Maximum allowable input (45 to 66 Hz): 600 A continuous
Maximum rated terminal-toground voltage: CAT III (1000 V), CAT IV (600 V)
Frequency band: Accuracy defined up to 20 kHz
