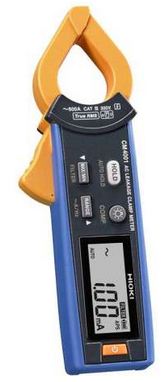

HIOKI CM4001 AC LEAKAGE CLAMP METER (60.00 mA ~ 600.0 A, True RMS)

AC Current range: 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)

Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)

Guaranteed accuracy: from 0.60 mA to 600.0A

AC Voltage range: N/A

Frequency range 40.0 Hz to 999.9 Hz

Crest factor: 4.5 (4000 counts or less)

3 (more than 4000 counts, 6000 counts or less)

Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)

Output function N/A

Other functions: Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function

Display Display refresh rate: 5 times/s

Power supply: LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)

Core jaw diameter: φ 24 mm (0.94 in)

Dimensions and mass: 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)

Accessories: Carrying case × 1, Strap × 1, Instruction manual × 1, Operating Precautions × 1, LR03 alkaline battery × 1
